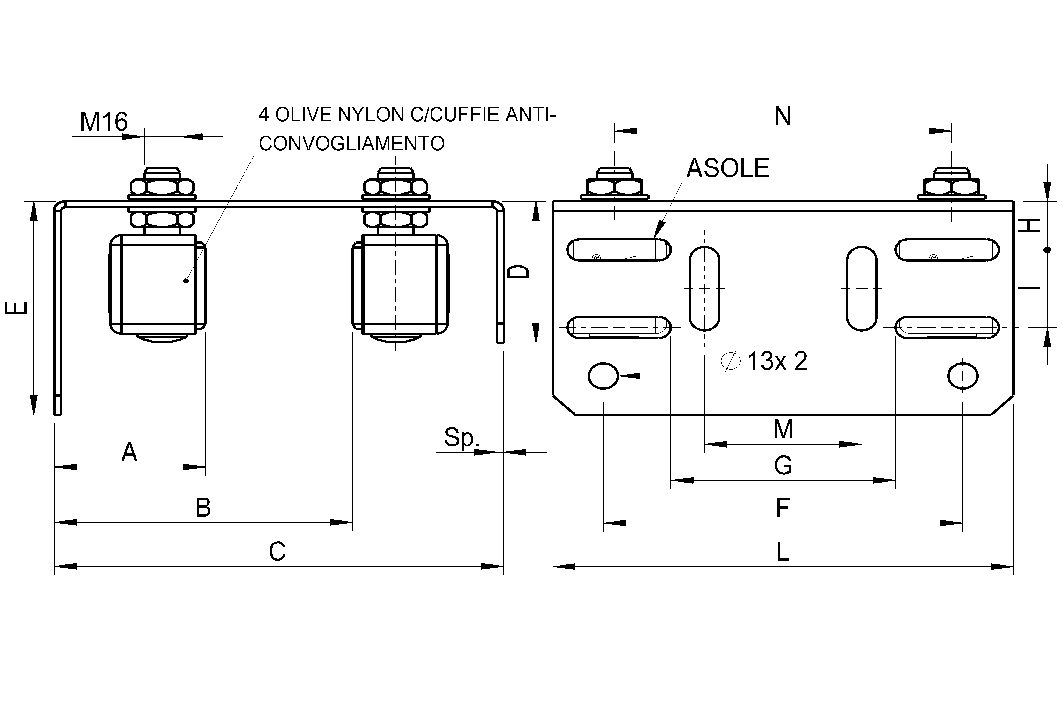

Tavola tecnica
| cod. | mm. | pz/pcs | A | B | C | D | E | F | G | H | 4 asole | 2 asole | sp | I | L | N | olive | staffa di fissaggio | Barcode | CodTek |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1462PL.M | MEDIA | 2 | 55 MIN. | 155 MAX. | 200 | 73 | 110 | 160 | 100 | 25 | 11x46 | 13x43 | 3 | 40 | 205 | 150 | Ø40x45 | 466.40 | 8033039322821 | AAC146201ZB |
| 1462PL.G | GRANDE | 2 | 50 MIN. | 200 MAX. | 250 | 74 | 151 | 250 | 170 | 22 | 11x54 | 13X53 | 4 | 90 | 300 | 250 | Ø40x60 | 466.90 | 8033039322838 | AAC146202ZB |
