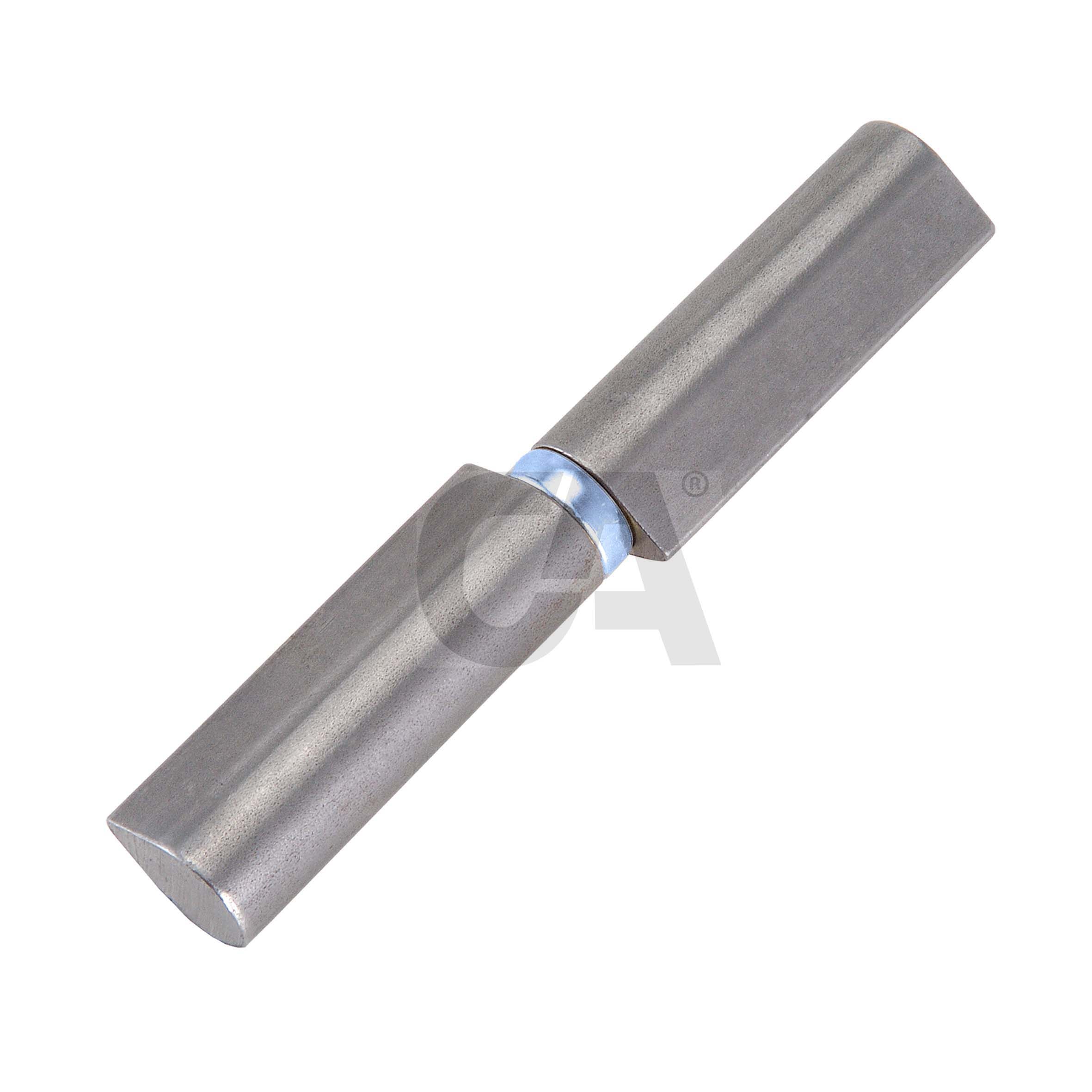

Steel drop turned hinge with brass pin with bearing

SKU: 261
261.16x20x120

Steel drop turned hinge with brass pin with bearing mm.16x20x120

261.16x20x140

Steel drop turned hinge with brass pin with bearing mm.16x20x140

261.20x25x100

Steel drop turned hinge with brass pin with bearing mm.20x25x100

261.20x25x150

Steel drop turned hinge with brass pin with bearing mm.20x25x150

261.22x25x150

Steel drop turned hinge with brass pin with bearing mm.22x25x150

261.23x28x150

Steel drop turned hinge with brass pin with bearing mm.23x28x150

261.23x28x200

Steel drop turned hinge with brass pin with bearing mm.23x28x200

  • bearing
  • brass pin
  • weld

Technical table

cod. mm. pz/pcs A B C ØD ØE L S Tipo
261.16x20x120 Ø16x20x120 24 58 20 12 Ø9 Ø16 121.5 5.6
261.16x20x140 Ø16x20x140 24 68 20 12 Ø9 Ø16 141.5 5.6
261.20x25x100 Ø20x25x100 12 46 25 15 Ø12 Ø20 98.5 6.5
261.20x25x150 Ø20x25x150 18 71 25 15 Ø12 Ø20 148.5 6.5
261.22x25x150 Ø22x25x150 18 71 25 14 Ø14 Ø22 148.5 6.7
261.23x28x150 Ø23x28x150 14 71 28.5 17 Ø14 Ø23 148.5 6.7
261.23x28x200 Ø23x28x200 12 96 28.5 17 Ø14 Ø23 198.5 6.7
