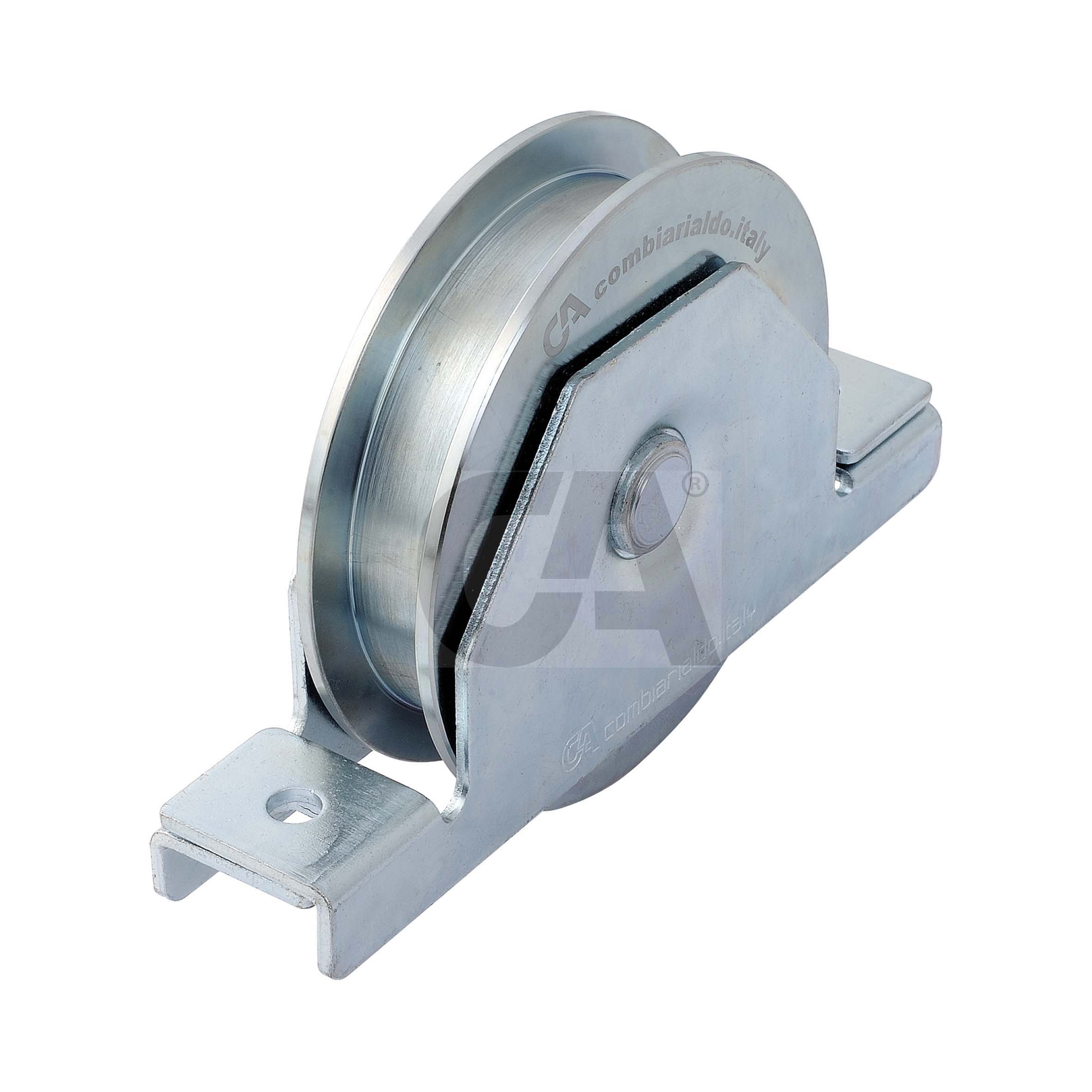

Wheel H groove 2 bearings with inside support

SKU: 433

433.90	Wheel H groove 2 bearings with inside support Ø90
433.100	Wheel H groove 2 bearings with inside support Ø100
433.120	Wheel H groove 2 bearings with inside support Ø120
433.140	Wheel H groove 2 bearings with inside support Ø140
433.160	Wheel H groove 2 bearings with inside support Ø160

Technical table

cod.	Ø	pz/pcs	A	B	C	D	ØF	I	H	ØG	L	sp	cusc	portata
433.90	90	6	155	9	33	18	Ø9	130	61	Ø68	16	24	2	390 kg.
433.100	100	6	155	14	33	18	Ø9	130	66	Ø78	16	24	2	410 kg.
433.120	120	4	185	14	37	20	Ø9	155	84	Ø98	21	28	2	430 kg.
433.140	140	4	205	15	42	22	Ø11	175	100	Ø118	21	32	2	550 kg.
433.160	160	4	225	20	42	24	Ø11	195	113	Ø138	21	32	2	630 kg.
